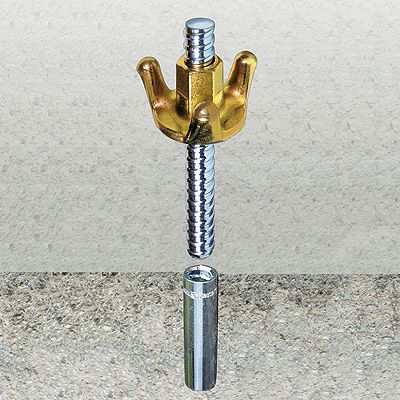

1.2. Impact Dowel and Screw-in Set
- Can be utilised in all cases for fixing anchor tie bars retrospectively
- Infinitely variable screw-in depth and clamping thickness
- For fixing formwork in in-situ concrete construction work
- Screw-in set as accessory for fastening purposes when assembling precast components as well as for fixing formwork and / or formwork supports for in-situ concrete
- Approved load ratings determined for a 15 N/mm² low concrete strength
- Breaking forces tested and documented by an official testing institute
- Inexpensive solution in all cases where a larger concrete anchor is not necessary
impact dowel D&W 20 mm
Product no.: 122020
Weight: 0,31 kg
Packaging unit: 50,00 pieces
impact dowel D&W 20 mm
galvanized
File
Data sheet - 122020.pdf
37.21 KB
Fitting products:
Threaded railing post with D&W 20 mm
drive-in pin
for impact dowel D&W 20 mm
punching pin
for impact dowel D&W 20 mm
hard metal drill
for impact dowel D&W 20 mm
